Stereo Integrity - Irrefutable Audio Ingenuity
Since its conception decades ago astute American designer Stereo Integrity has built a superb reputation and rich heritage, designing and manufacturing audio products that aren't just a cut above the competition; they literally decimate said competition. An audio engineering company committed to developing products of upmost quality, Stereo Integrity's small team of passionate and highly qualified engineers craft most items by hand to meet the stringent demands of the true audiophile market. Between its incredible technical acumen and a proven competition record, this impressive company continues to design and produce world-class calibre products. Thus delivering time and time again on its promise to always pursue aural perfection.

Satellite Series – Epitomising Articulation, Linearity And Kinetics
For the consummate music enthusiast who desires not only superb control but also volume aplenty! Stereo Integrity's superb Satellite range of component speakers offer the ultimate balance between precise aural reproduction and forceful kinetic output. Engineers have combined superb quality materials such as highly efficient polymer and carbon composites with advanced no holds barred design architecture to provide audiophile level parameters in conjunction with serious sound pressure output levels. The Satellite range are the ultimate speakers for those who want the absolute best of both worlds!

Design Ideologies

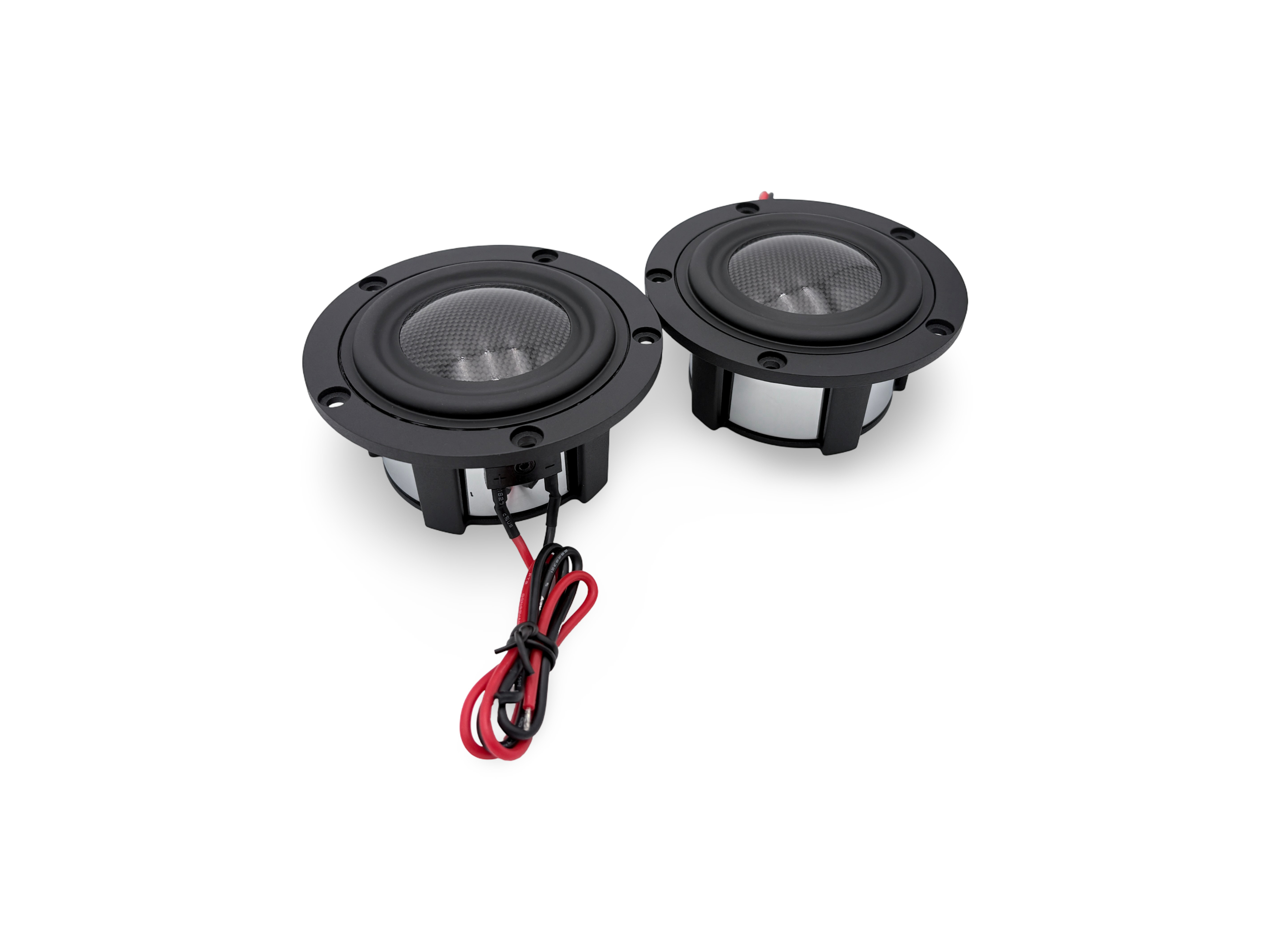

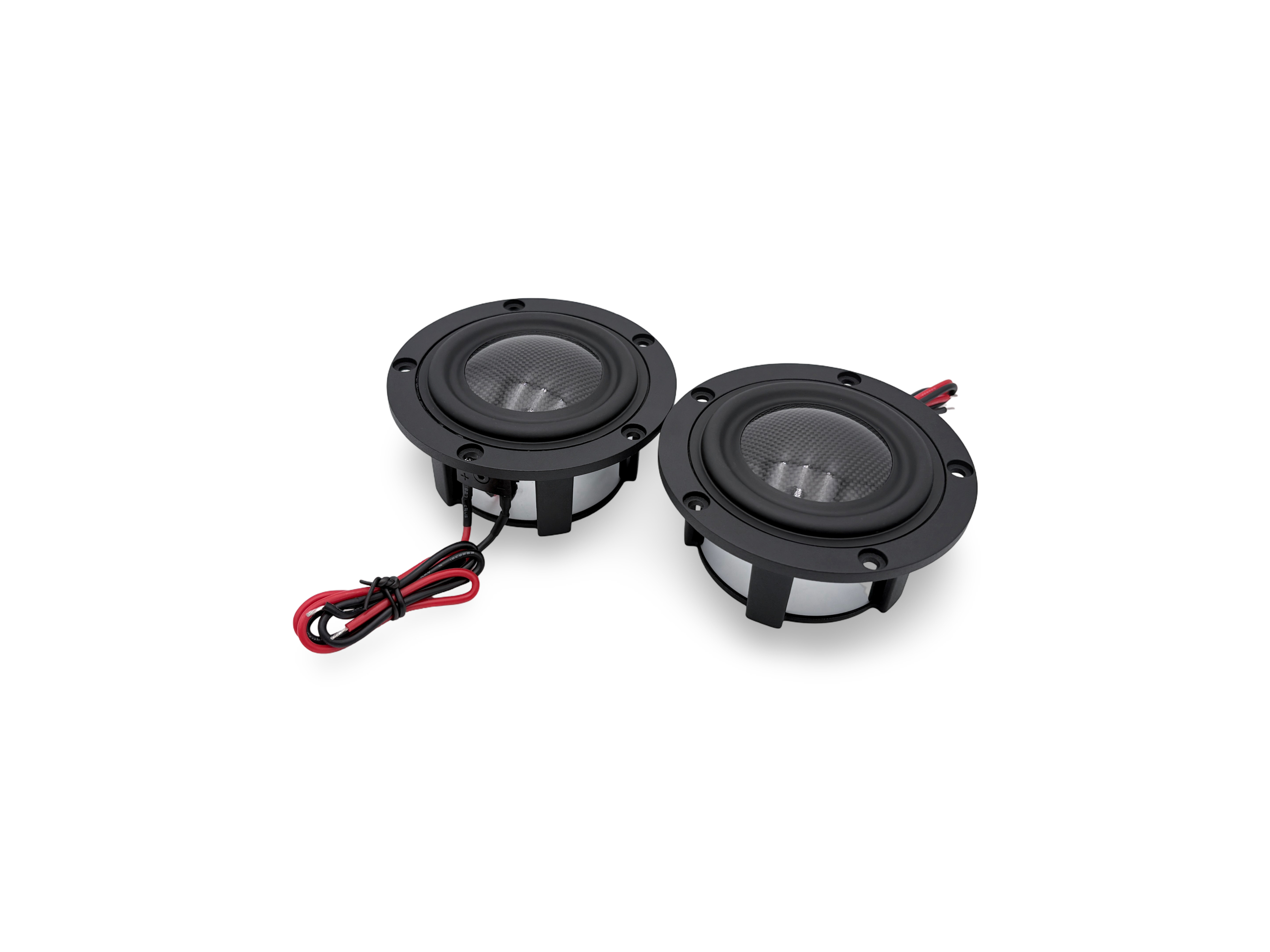

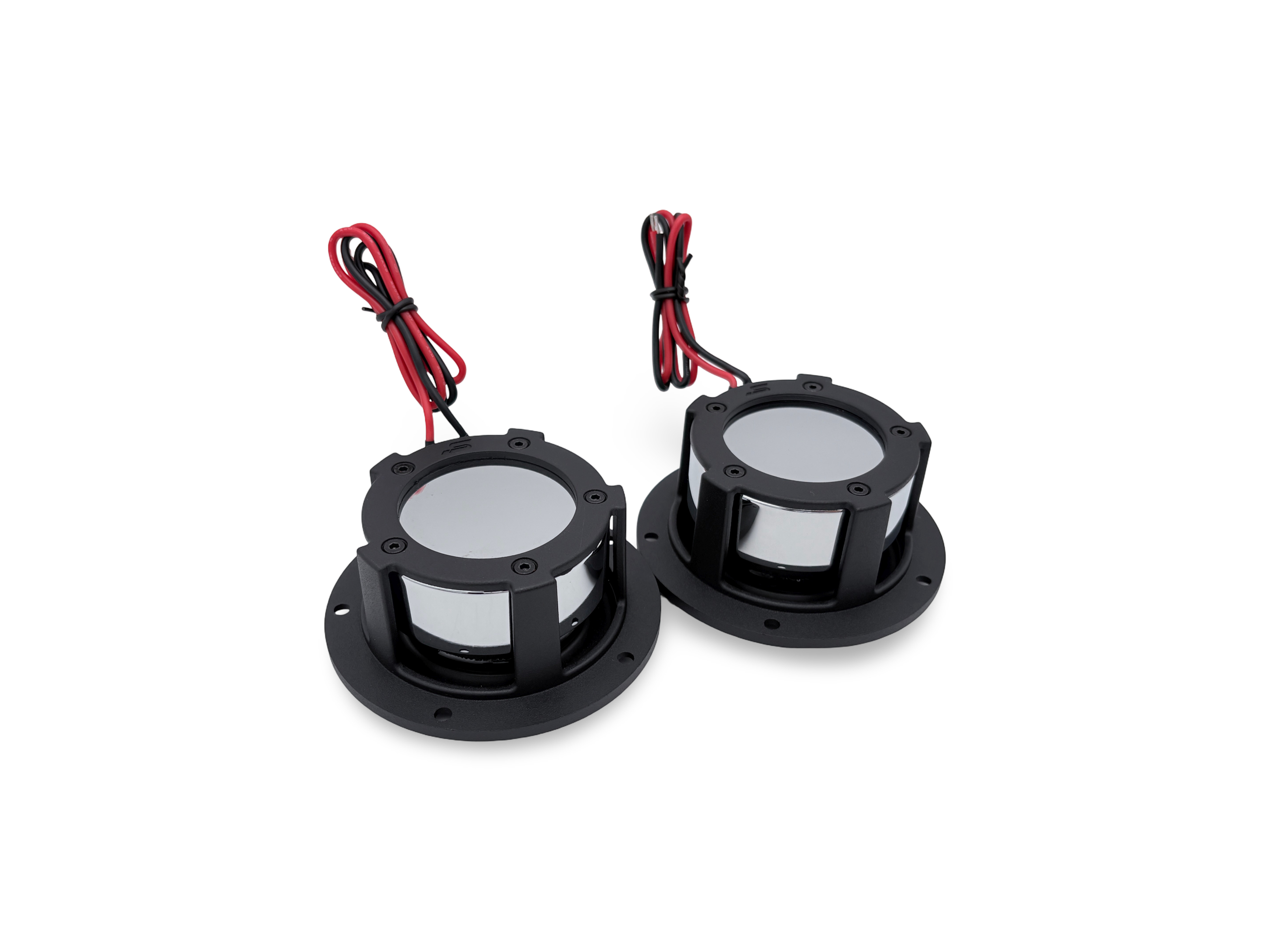

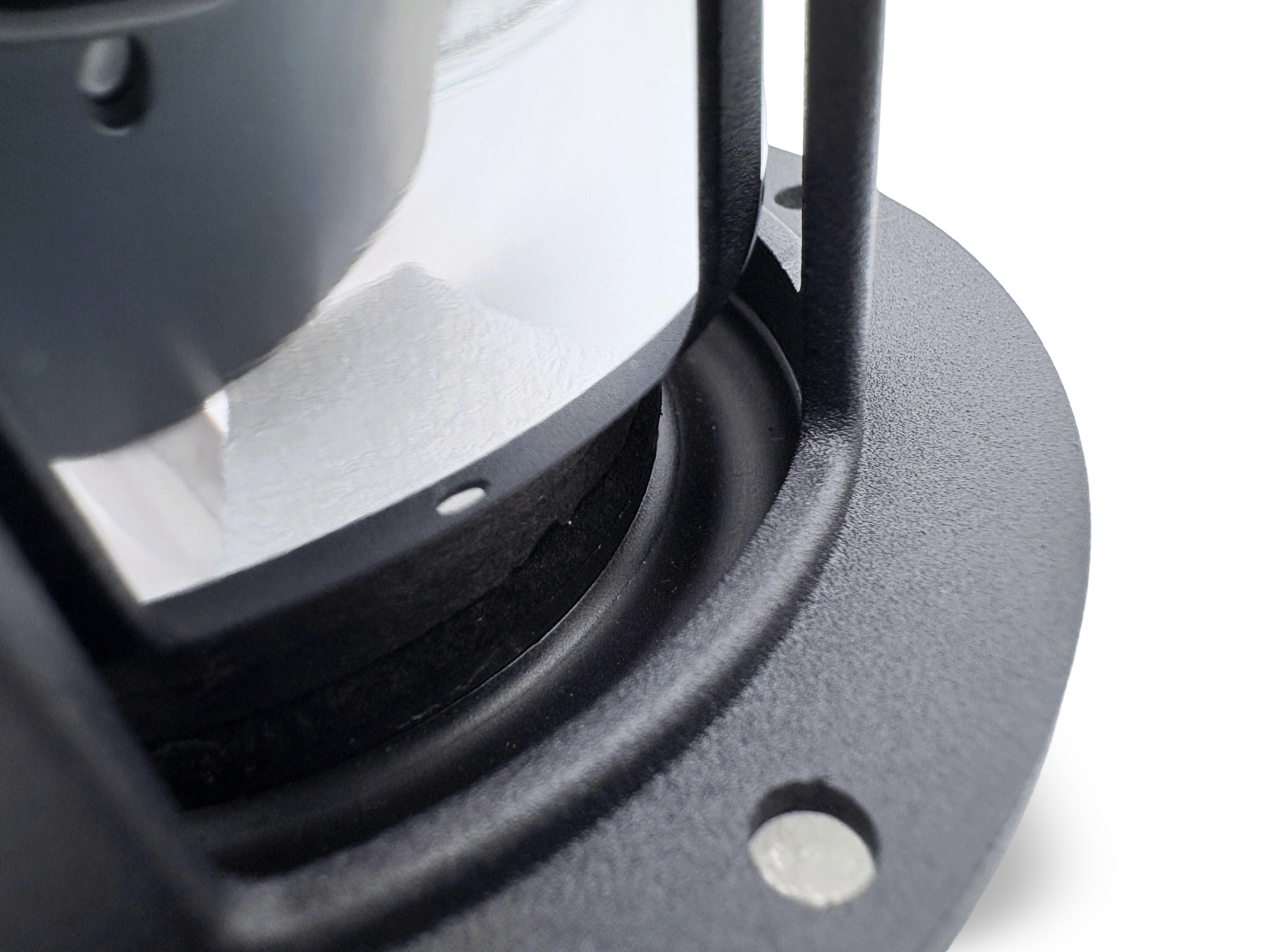

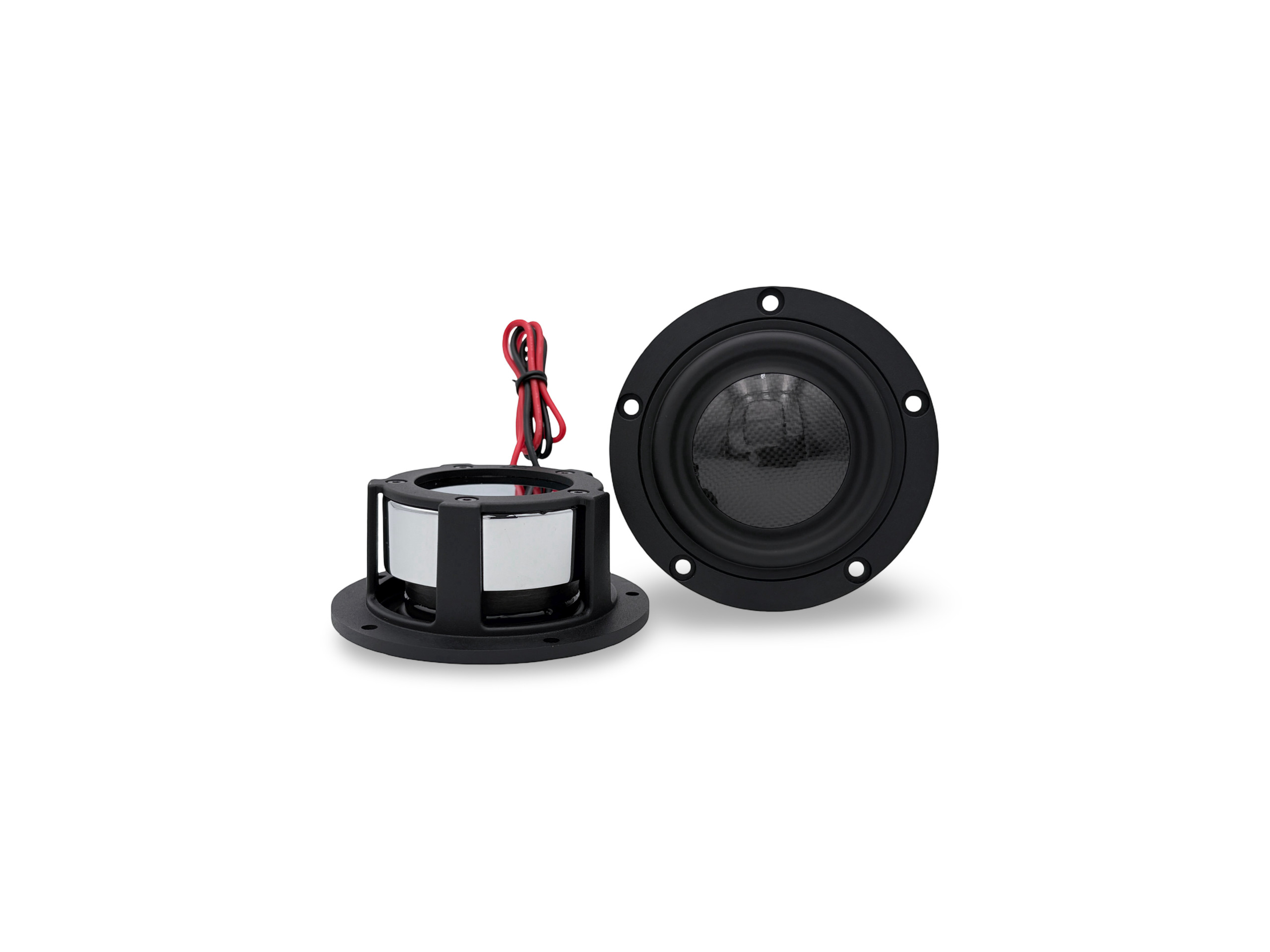

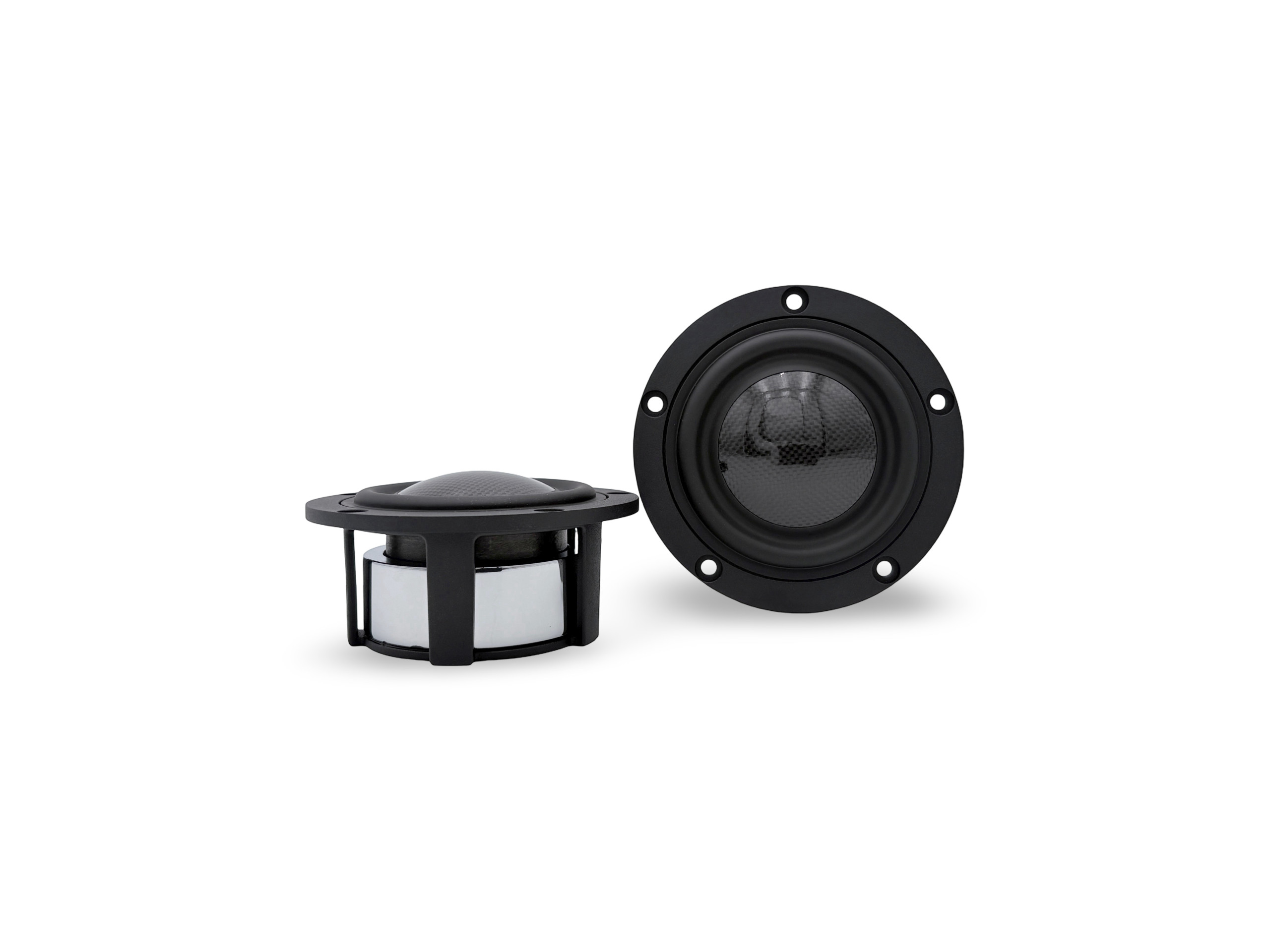

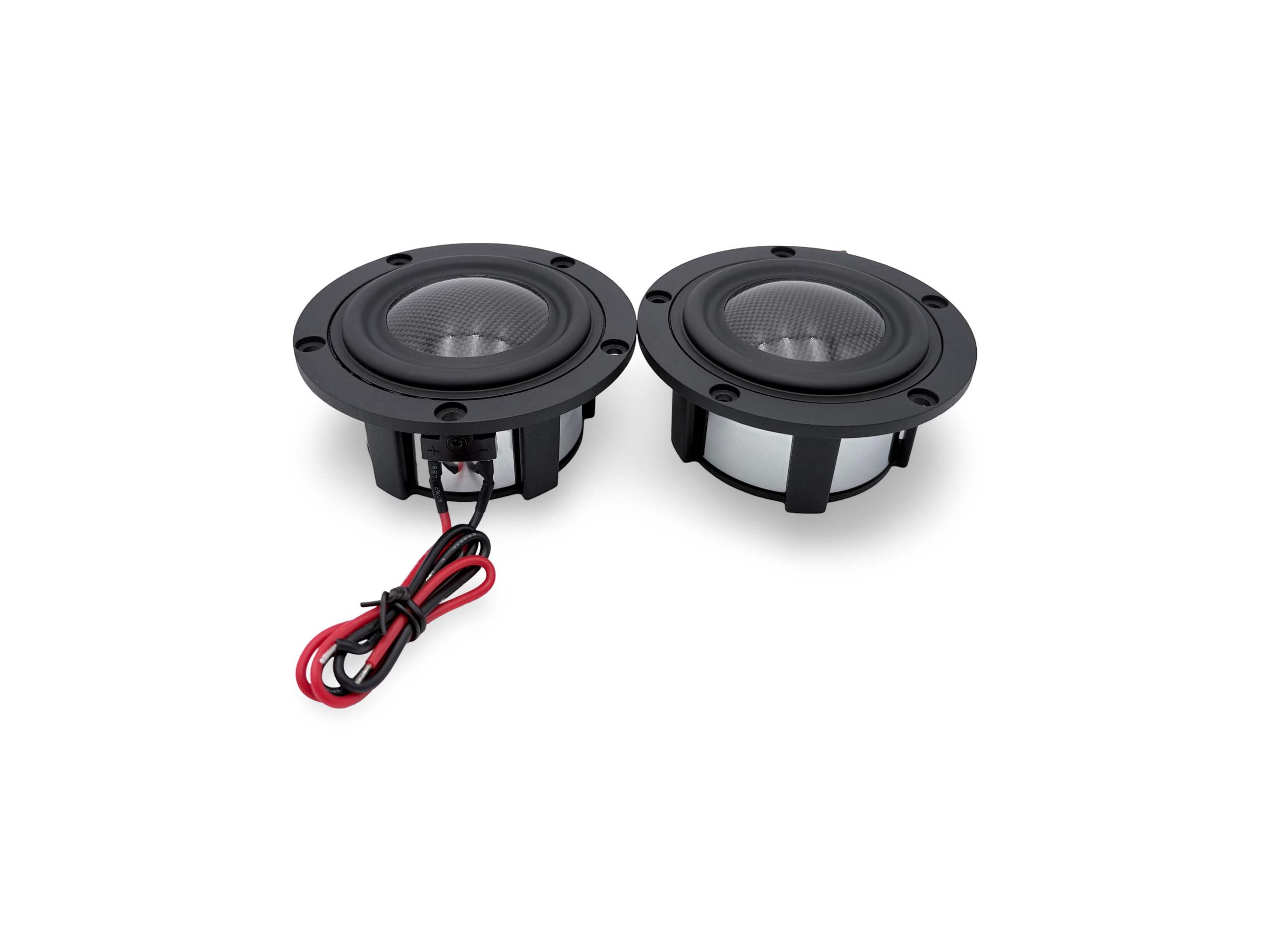

Experience a new level of performance with Stereo Integrity’s brilliantnew M350 midrange. This all-new design rethinks conventional midrange engineering with an innovative voice coil and spider arrangement. A massive 2″ / 50.8 mm diametre copper voice coil pairs with an internally mounted spider, positioned inside the voice coil former rather than below it. This unique layout provides generous, controlled spider movement while supporting the motor’s impressive 3.6 mm one-way linear excursion.

Improved Current Control

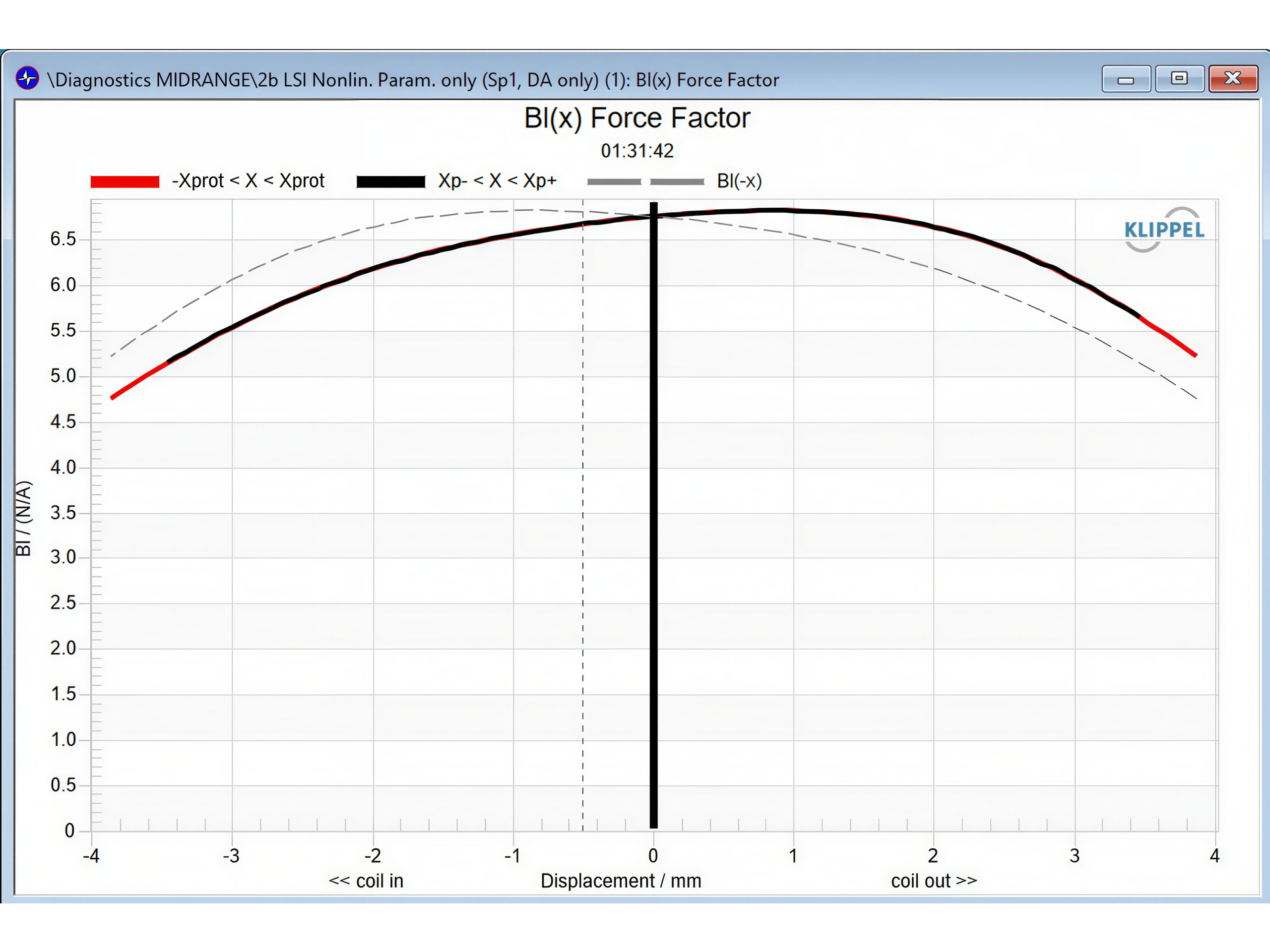

Increasing the voice coil to a full 2″ / 50.8 mm diametre dramatically improves thermal power handling in a compact 3.5″ driver. The lightweight copper winding is built on a Kapton former to reduce eddy currents while maintaining strength and efficiency. An all-new underhung motor design delivers greater motor force, improved sensitivity and 35% more one-way linear excursion than the previous generation; achieving 4 mm of linear travel with 70% BL.

Custom Engineering

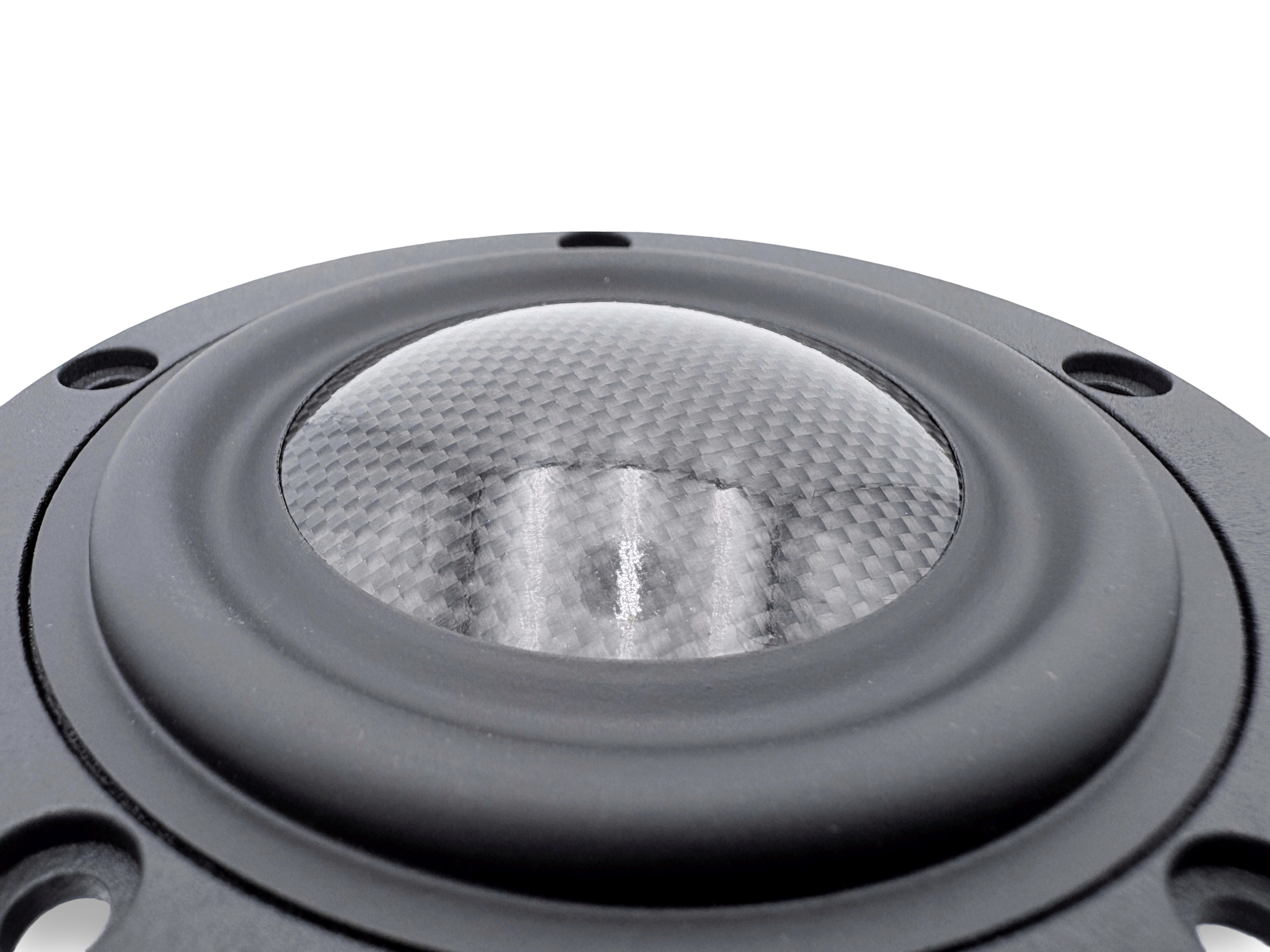

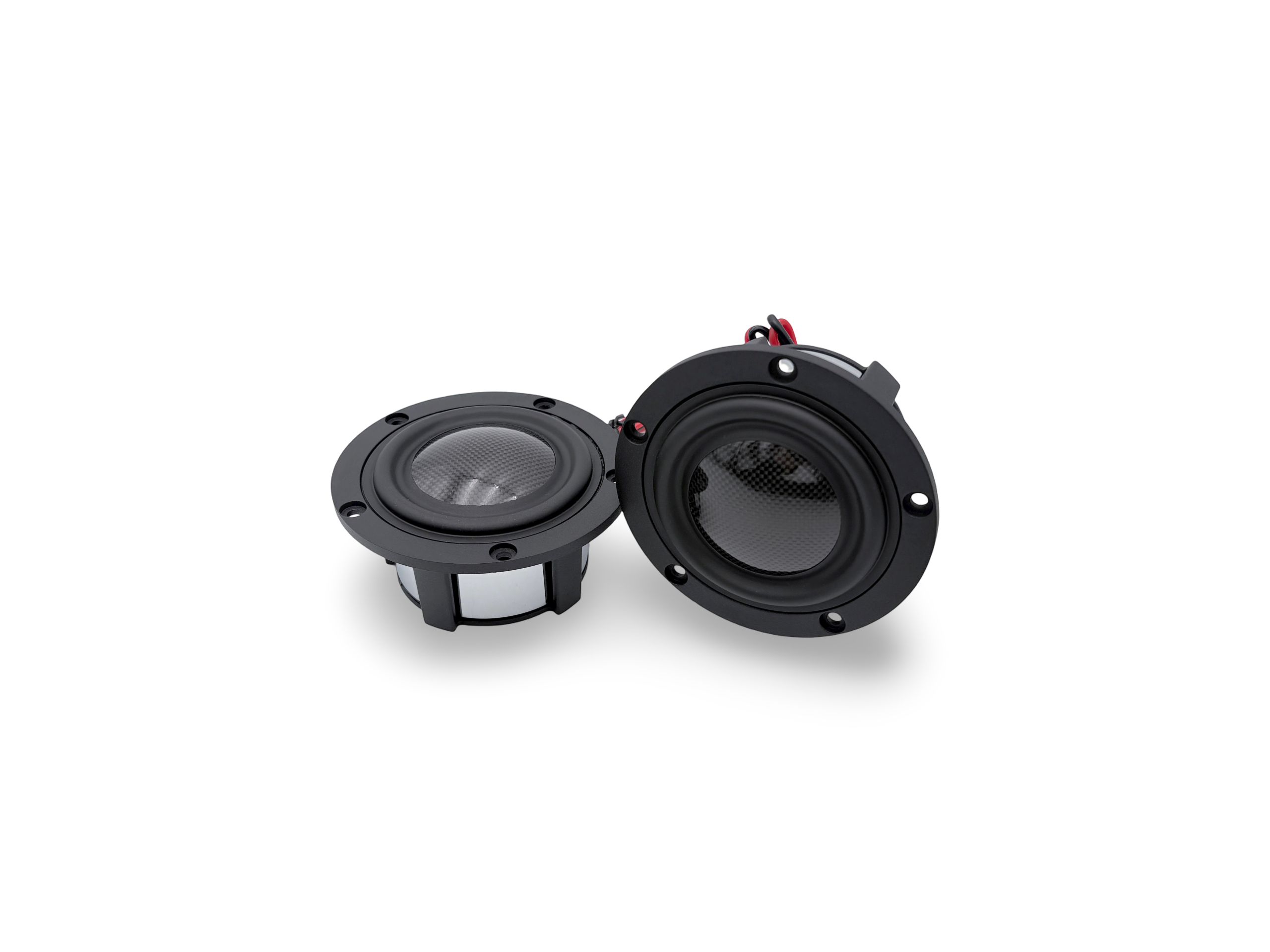

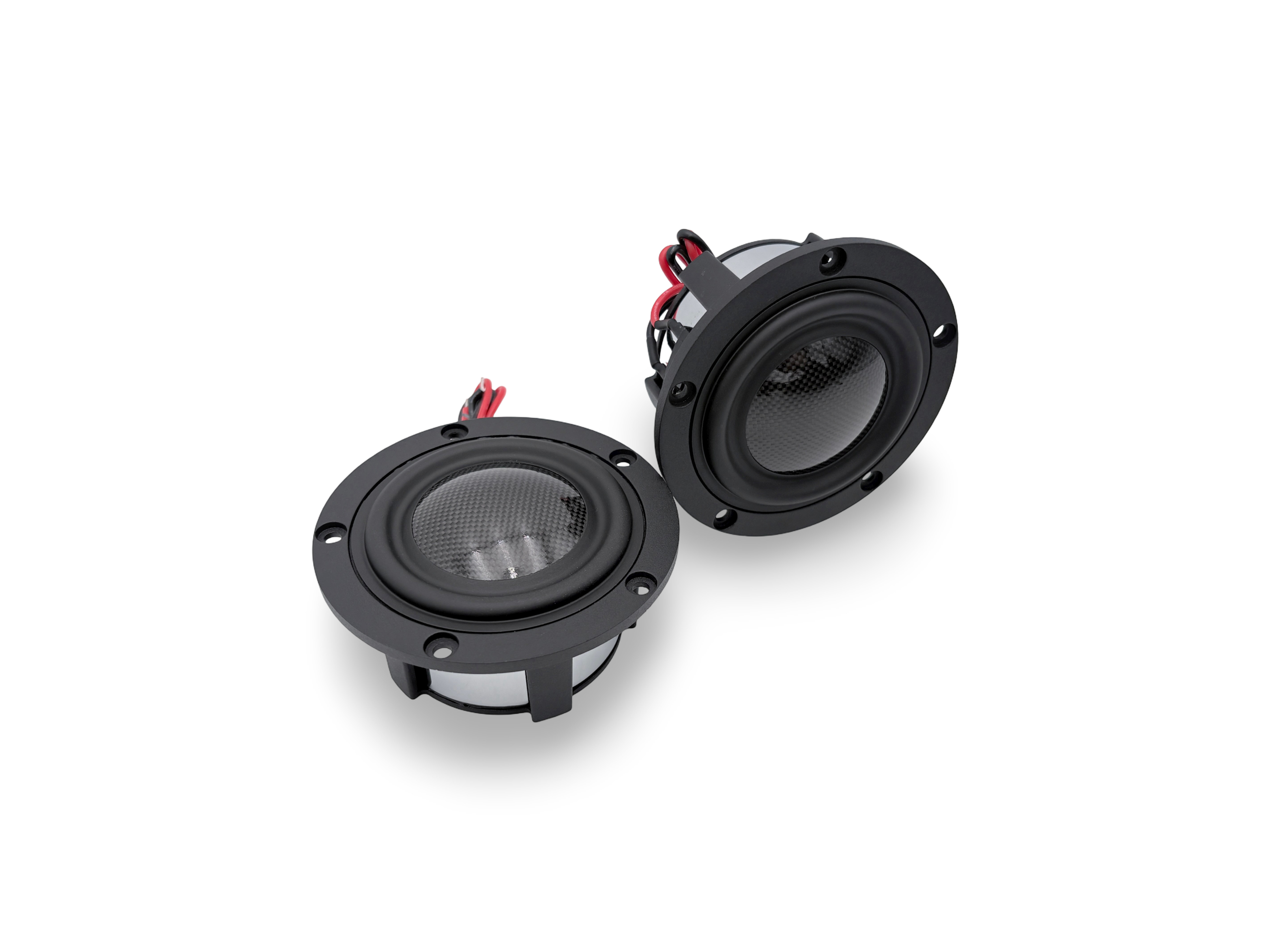

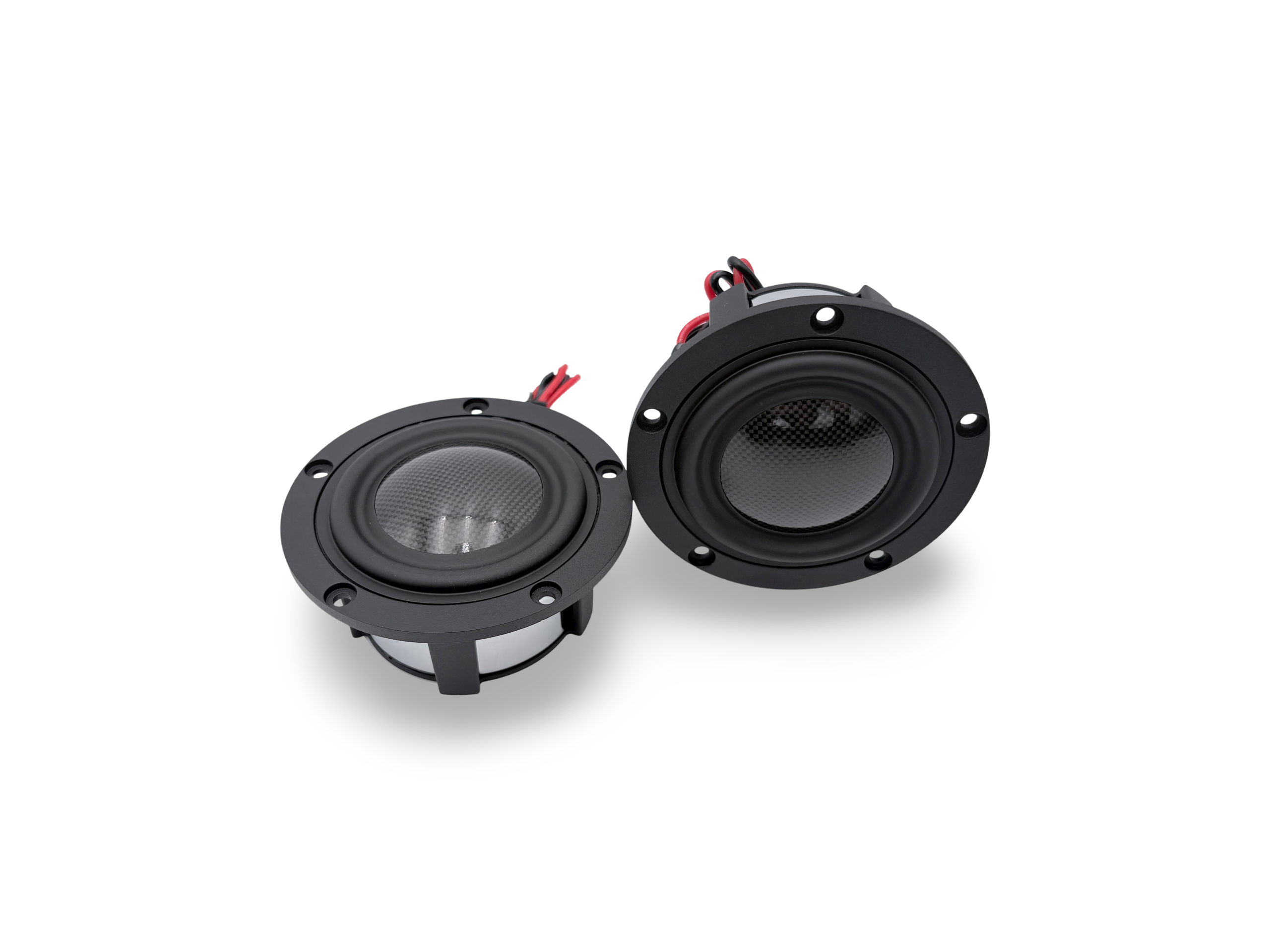

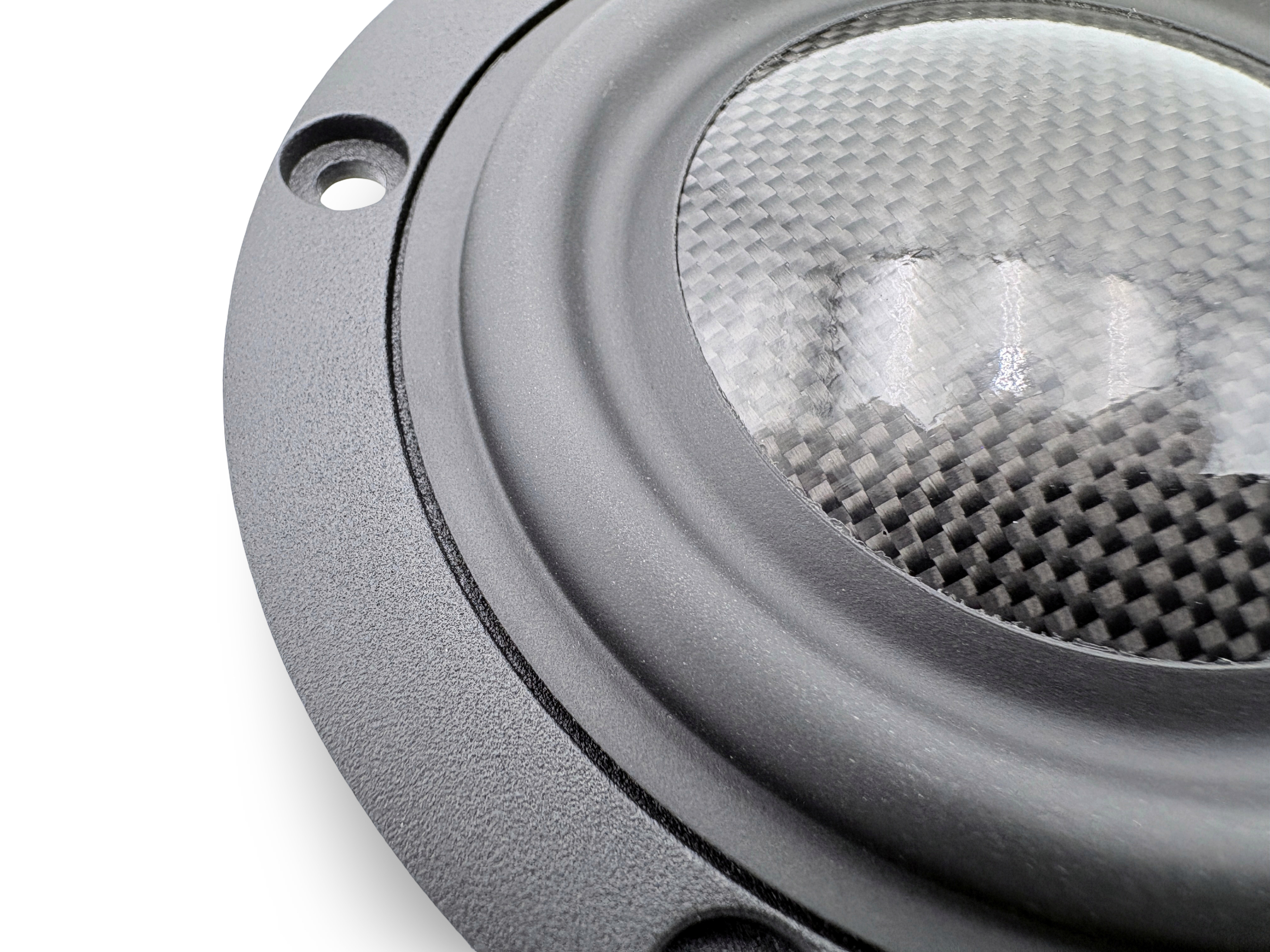

A custom-engineered carrier joins the spider to the full carbon fibre dome, which serves as the driver’s radiating surface. Carbon fibre was chosen for its exceptional stiffness-to-weight ratio, allowing outstanding performance across the recommended 400 Hz to 5000 Hz bandwidth. The large dome also allows the internal spider to move freely; while the precision carrier keeps the voice coil, spider, dome and surround perfectly aligned throughout operation.

Clever Dimensions

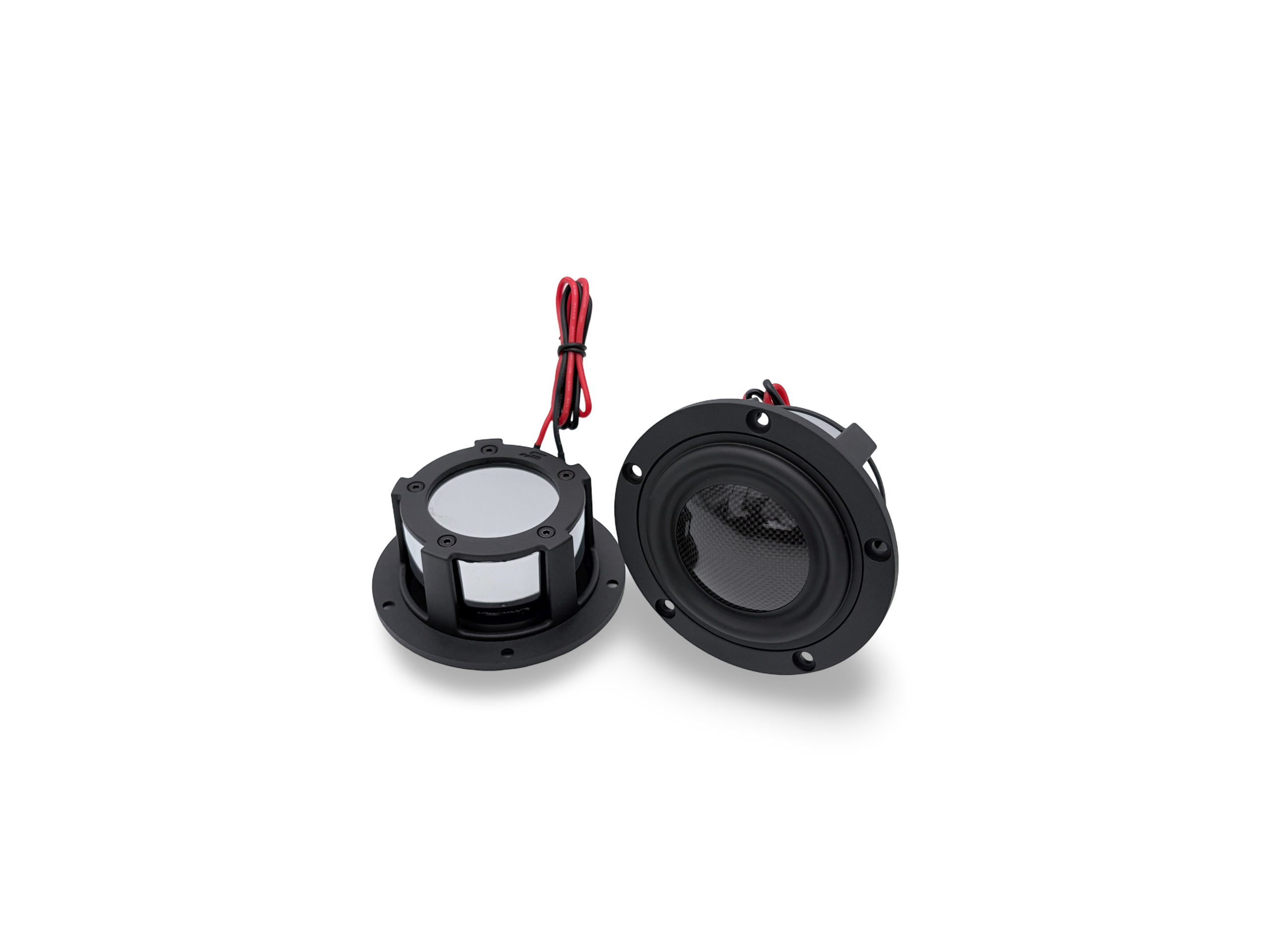

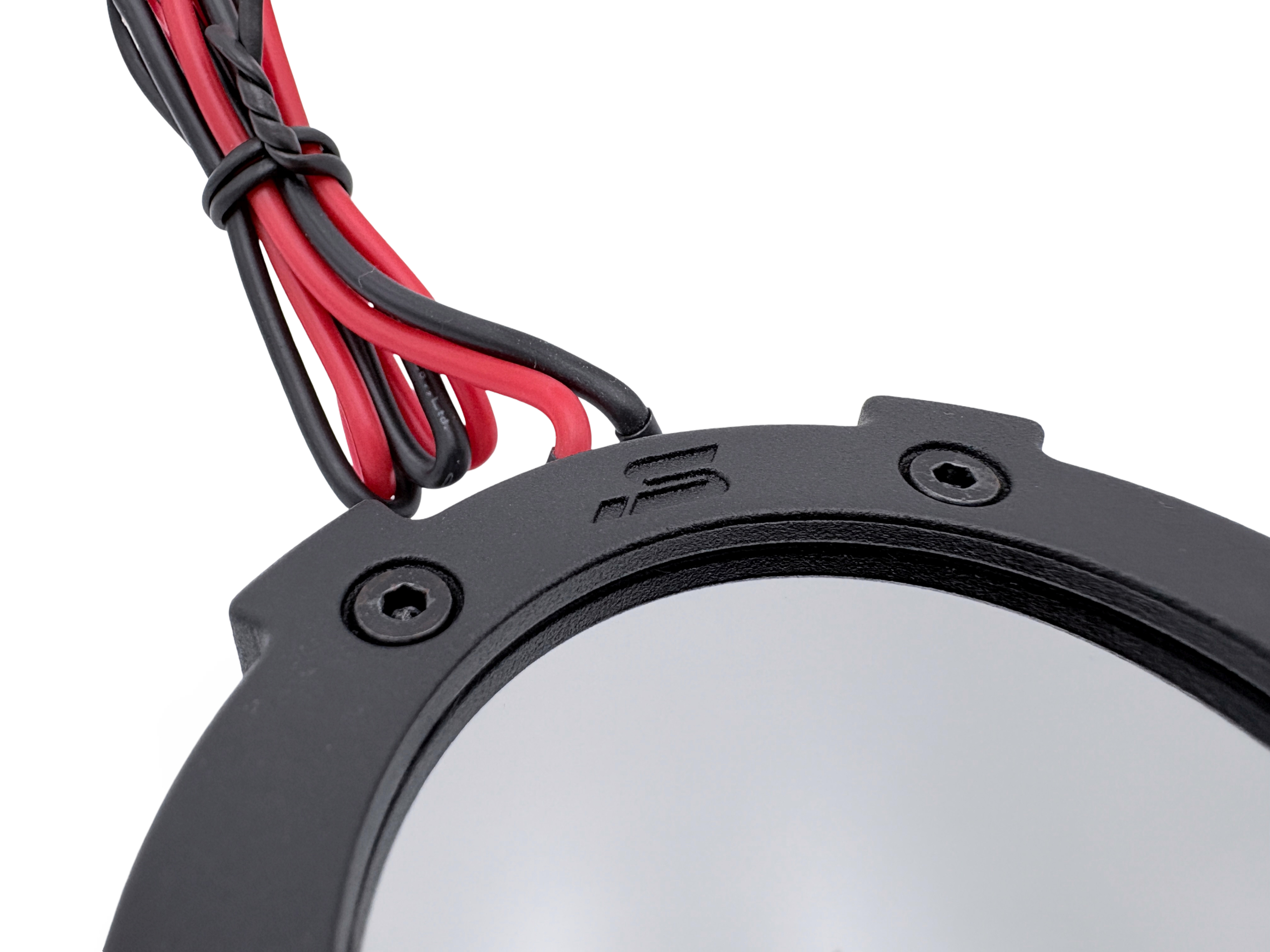

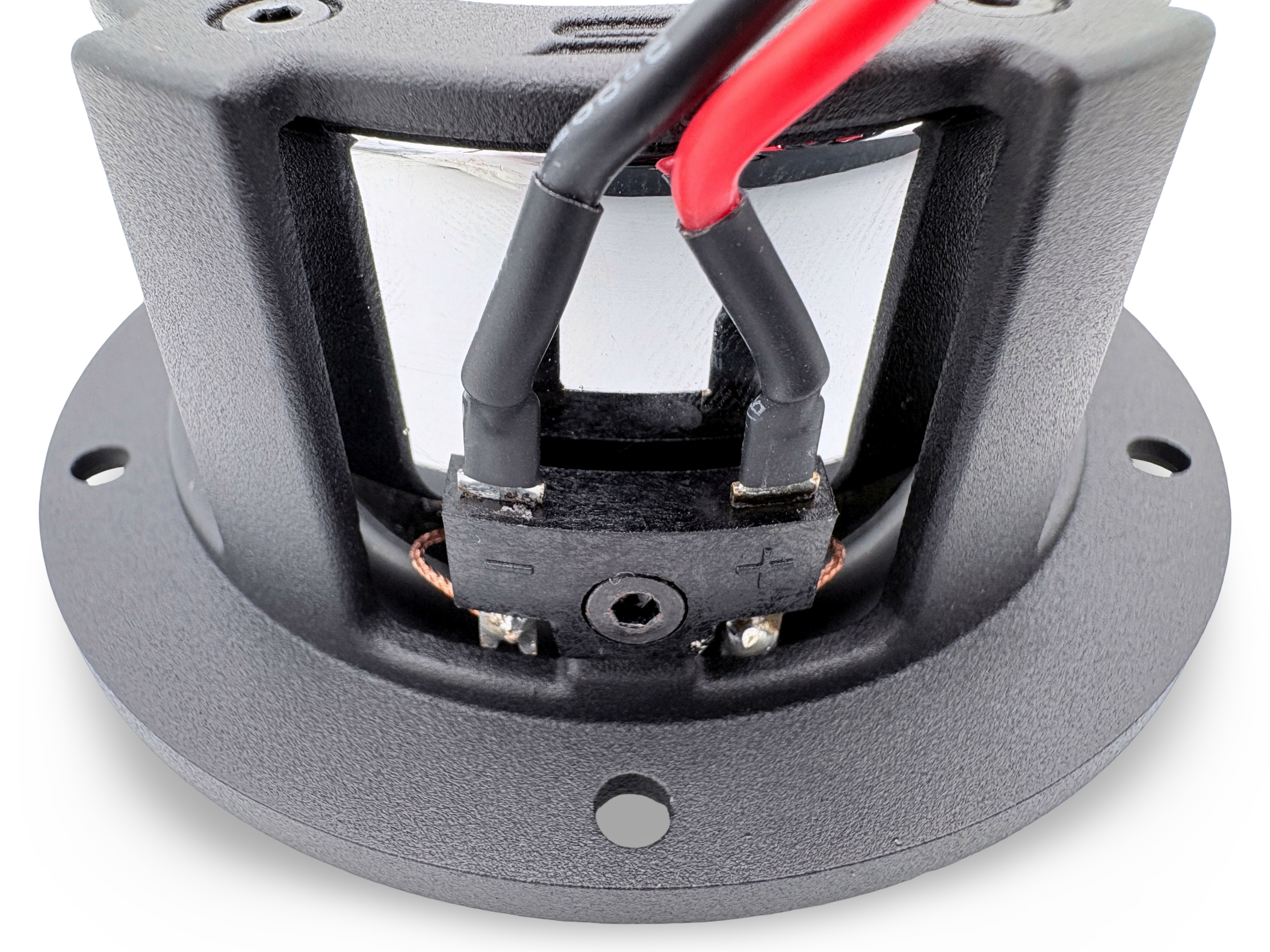

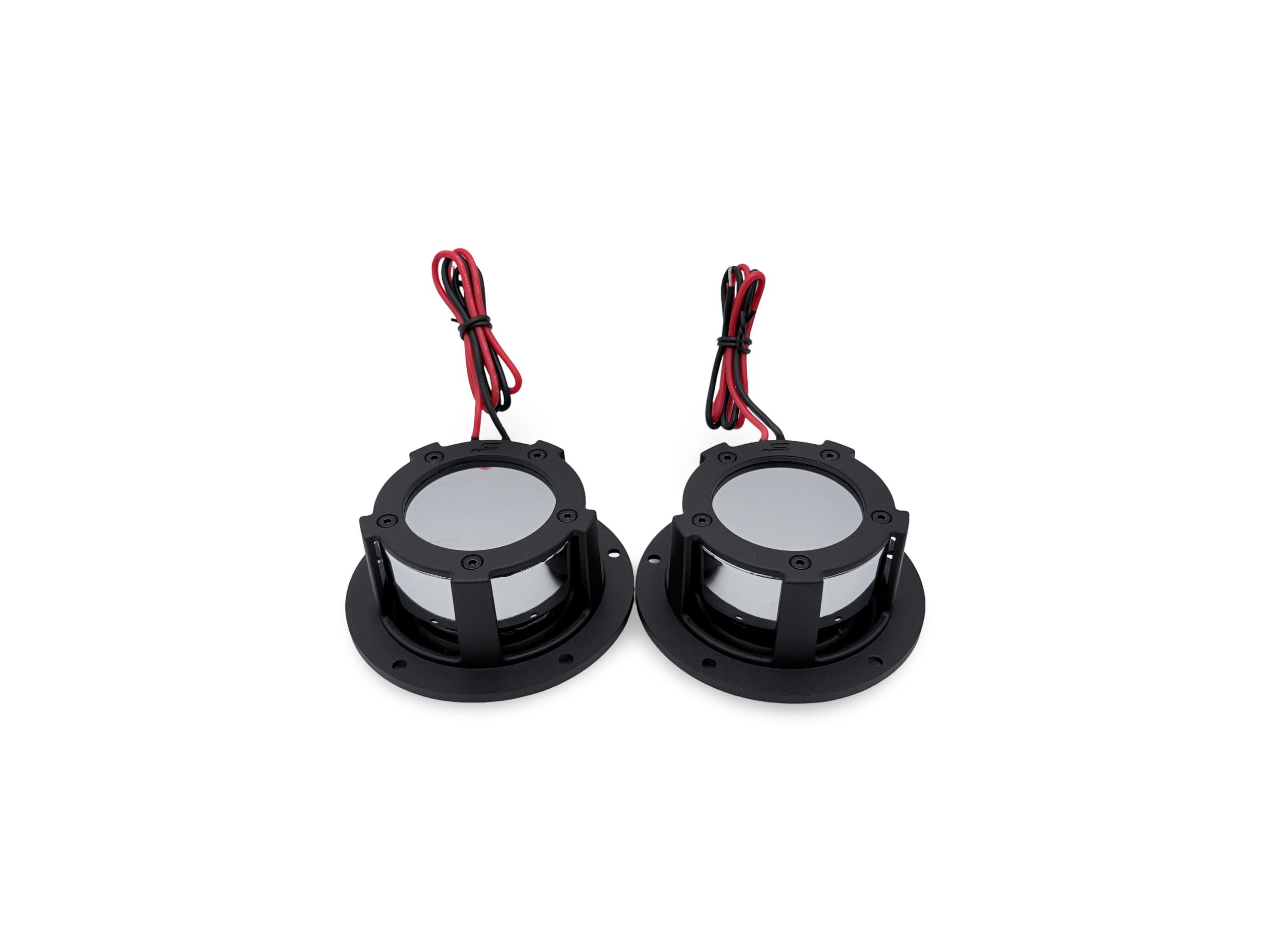

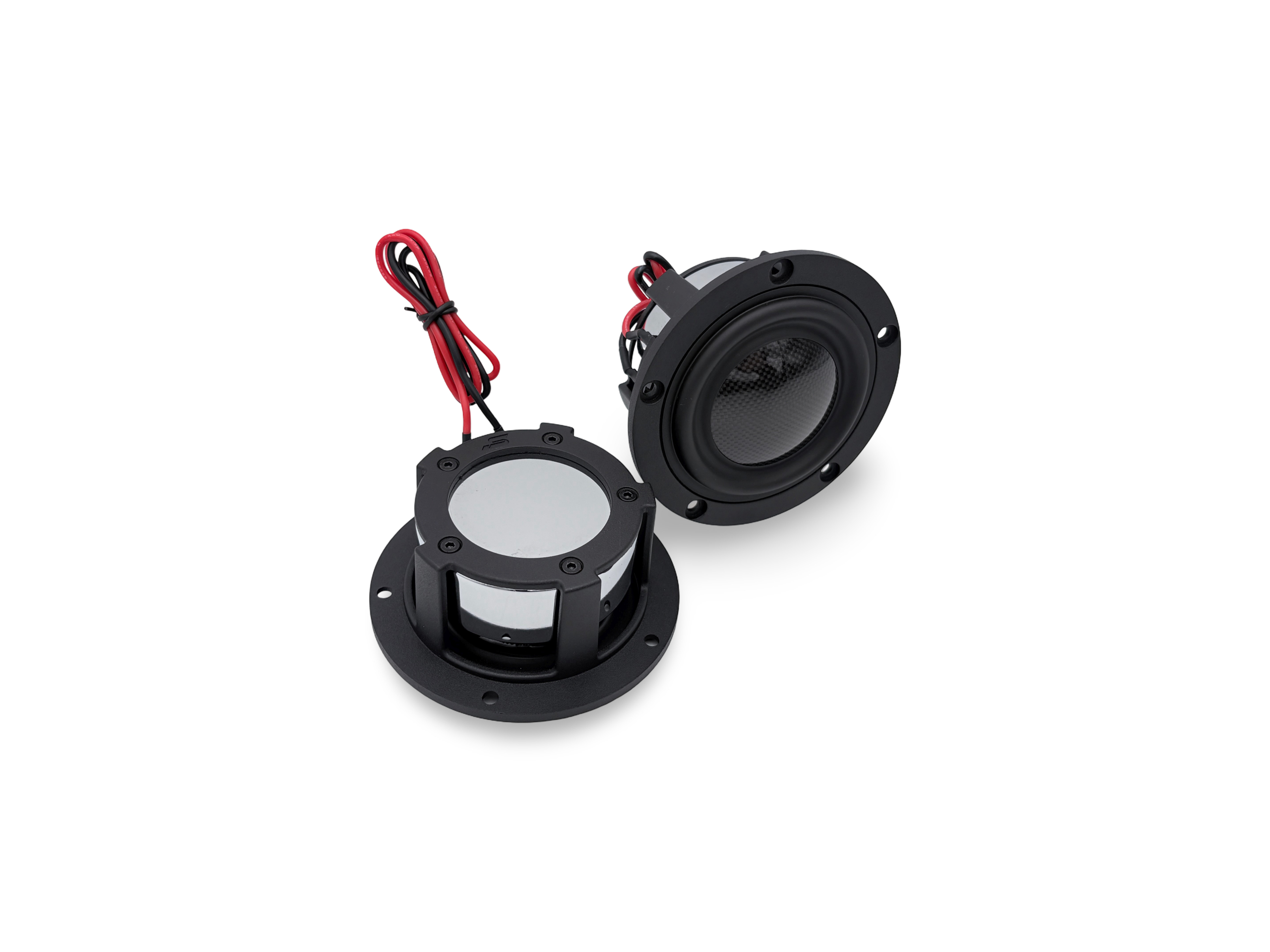

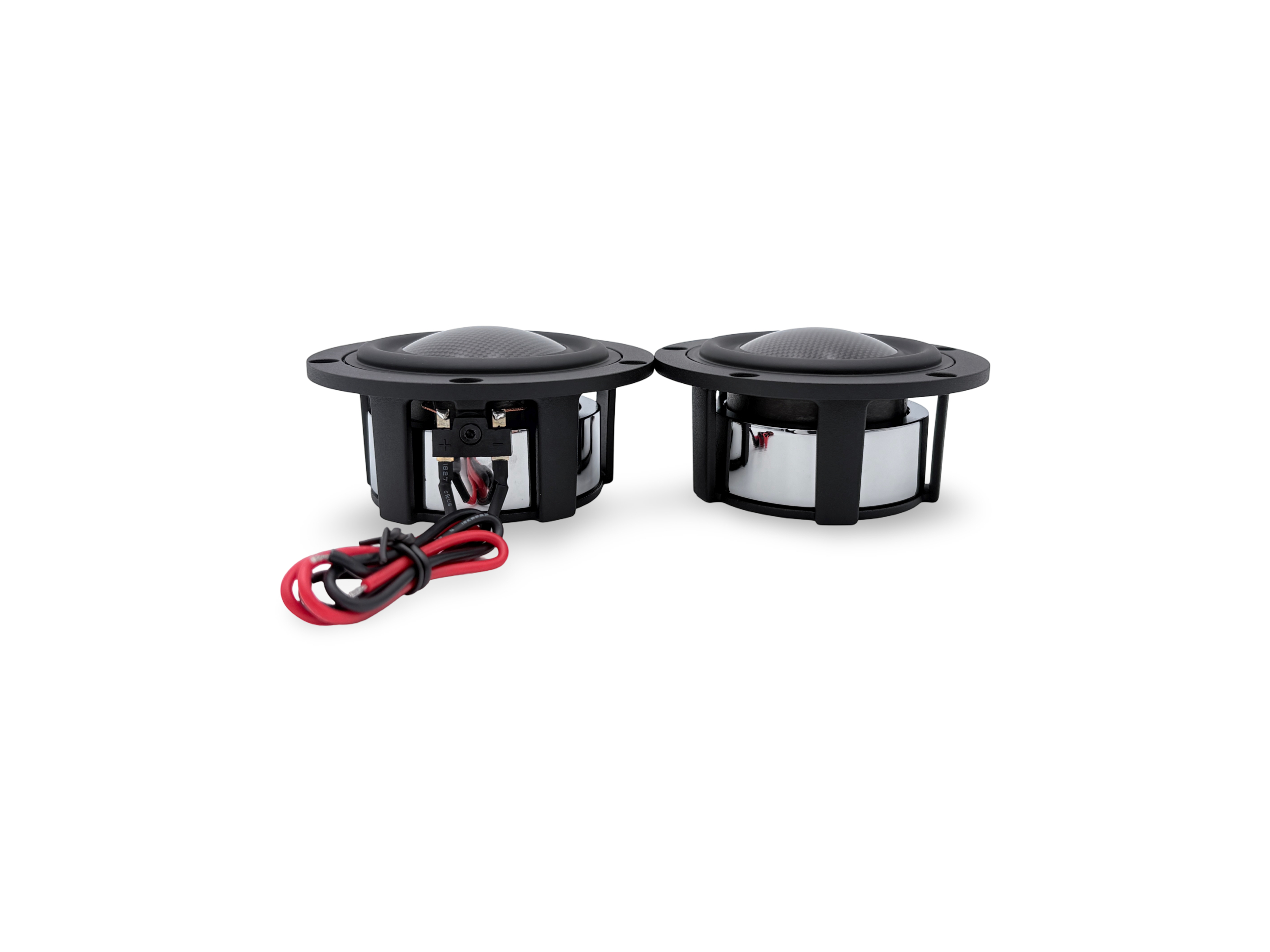

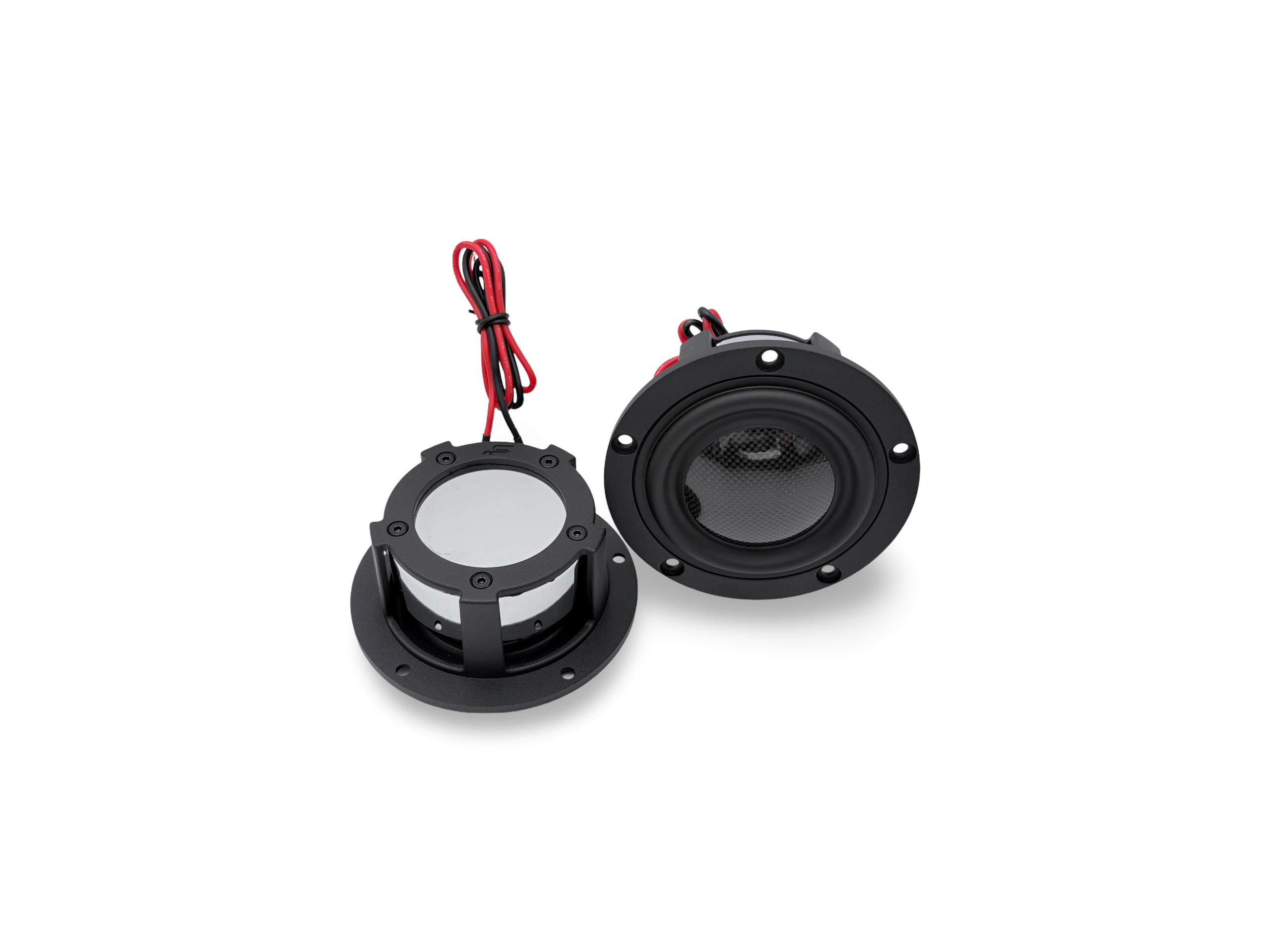

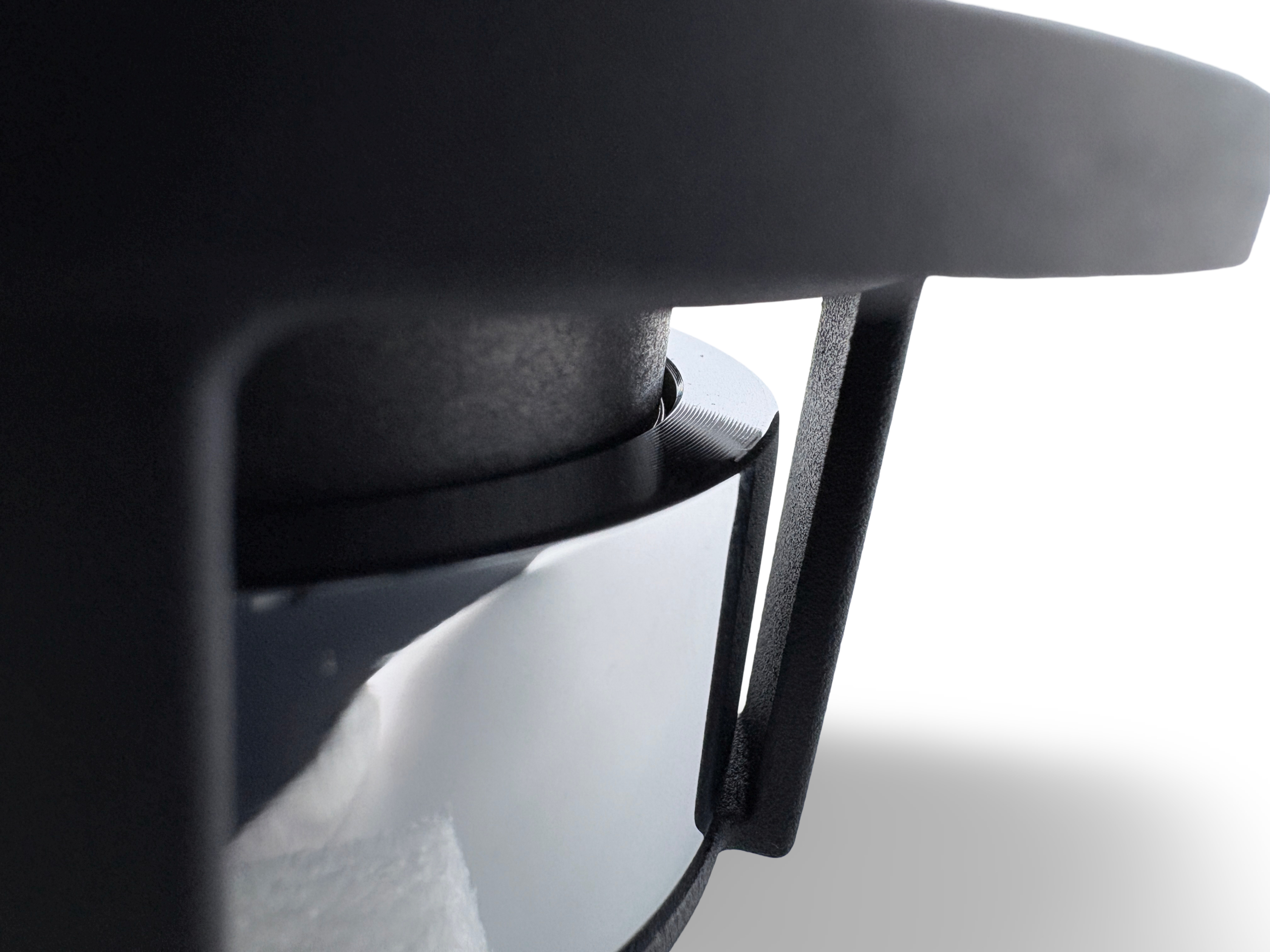

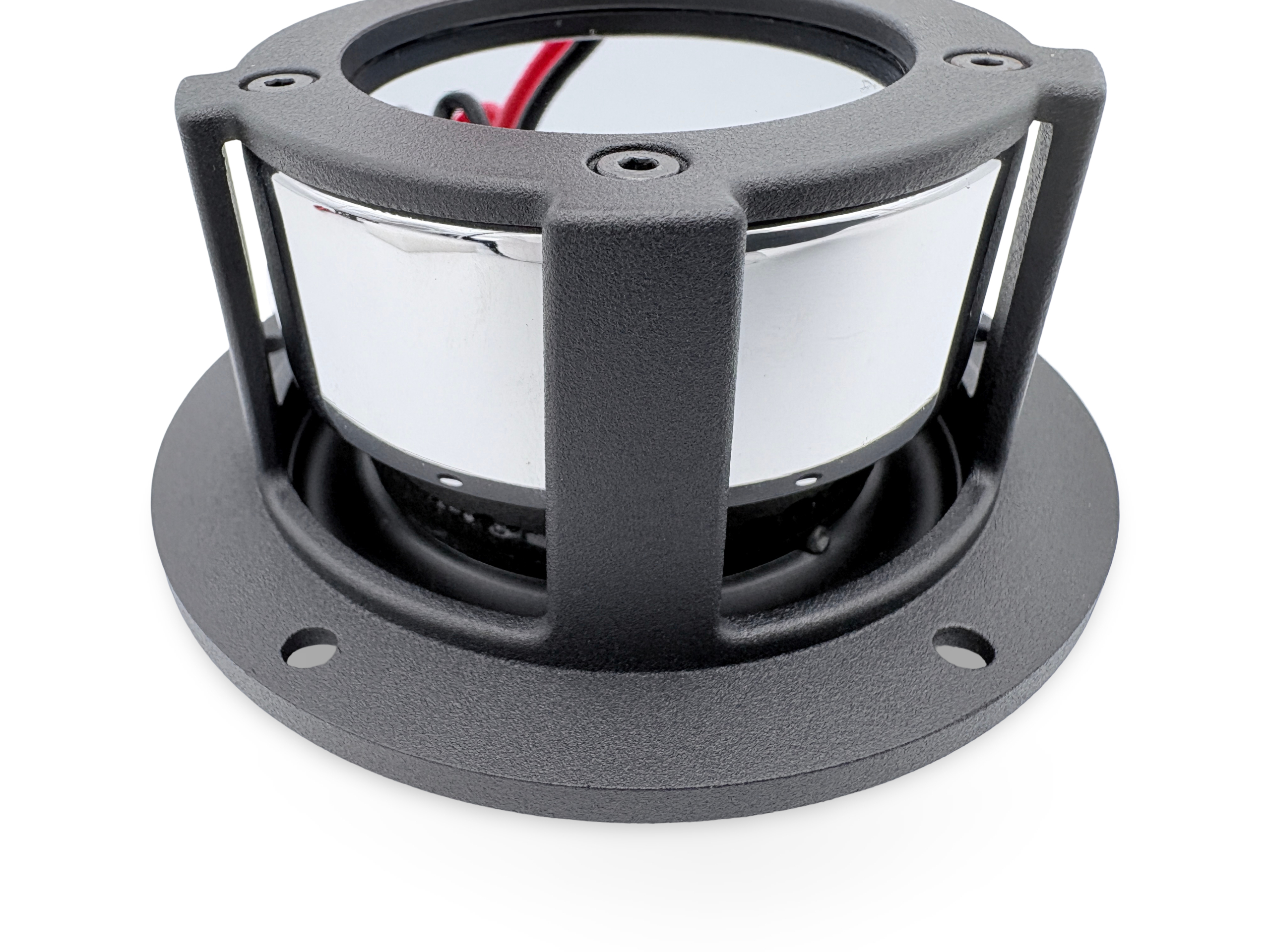

Mounting depth has been reduced to just 36 mm, making the M350 30% shallower than the previous version for easier installation in more applications. A newly designed minimalist cast aluminum frame features a compact terminal block with direct-soldered voice coil leads for quick and reliable connections. The mounting pattern, cutout and overall diameter remain unchanged from the previous M3 Carbon, making upgrades simple and straightforward.

Design Features
The rich heritage of this astute and masterful designer, together with its ever-increasing technical acumen; is conducive to these components featuring a vast array of impressive design ideologies and latest technological advancements. Some of these include:
– Carbon Fiber dome diaphragm.
– Synthetic copolymer surround.
– Cast aluminum basket.
– 2″ / 50.8 mm diameter copper voice coil.
– Spider inside the voice coil former.
– Underhung motor topology.

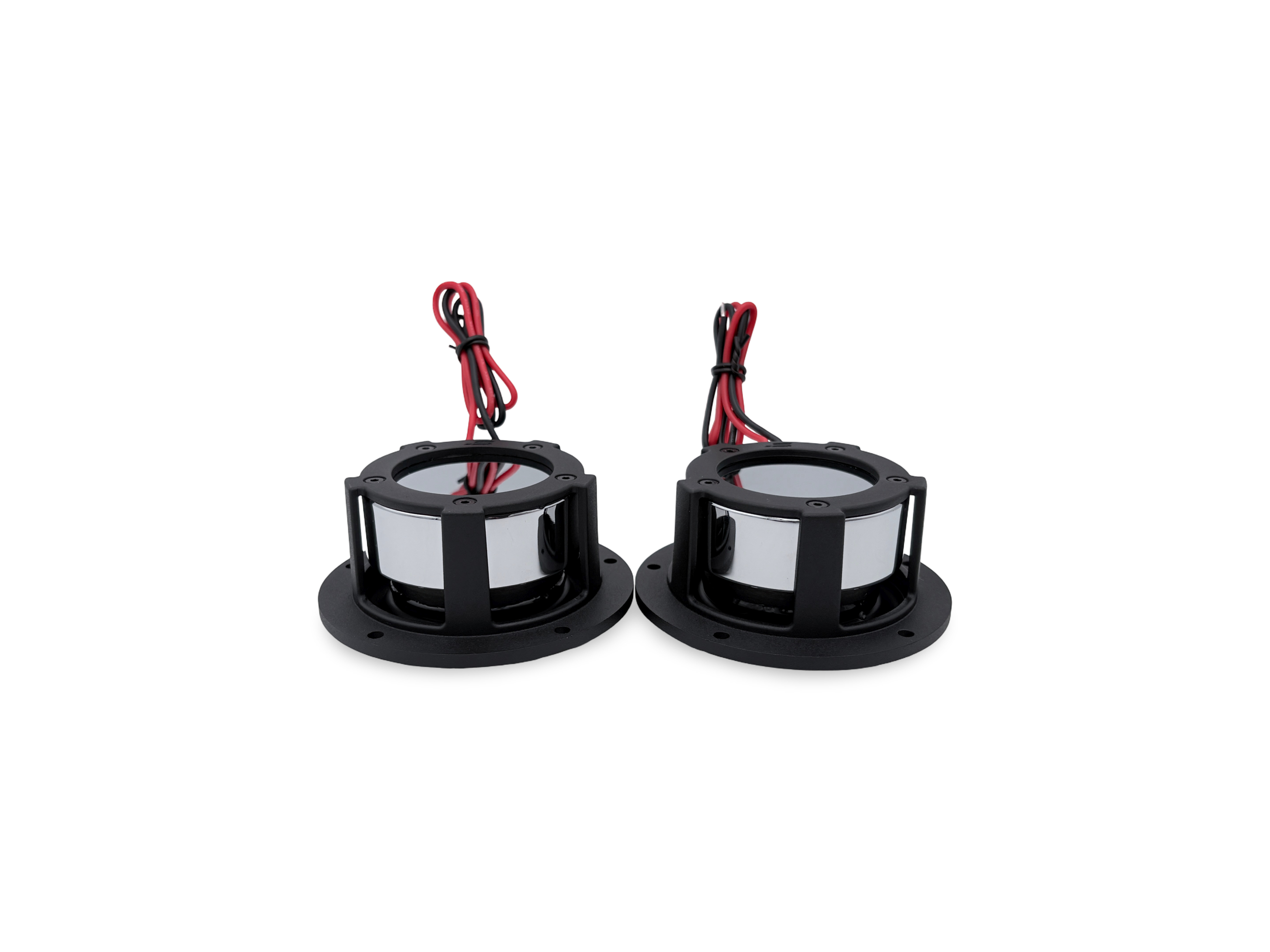

– Neodymium cup motor.
– Copper pole sleeve.
– Solid aluminum faraday ring.

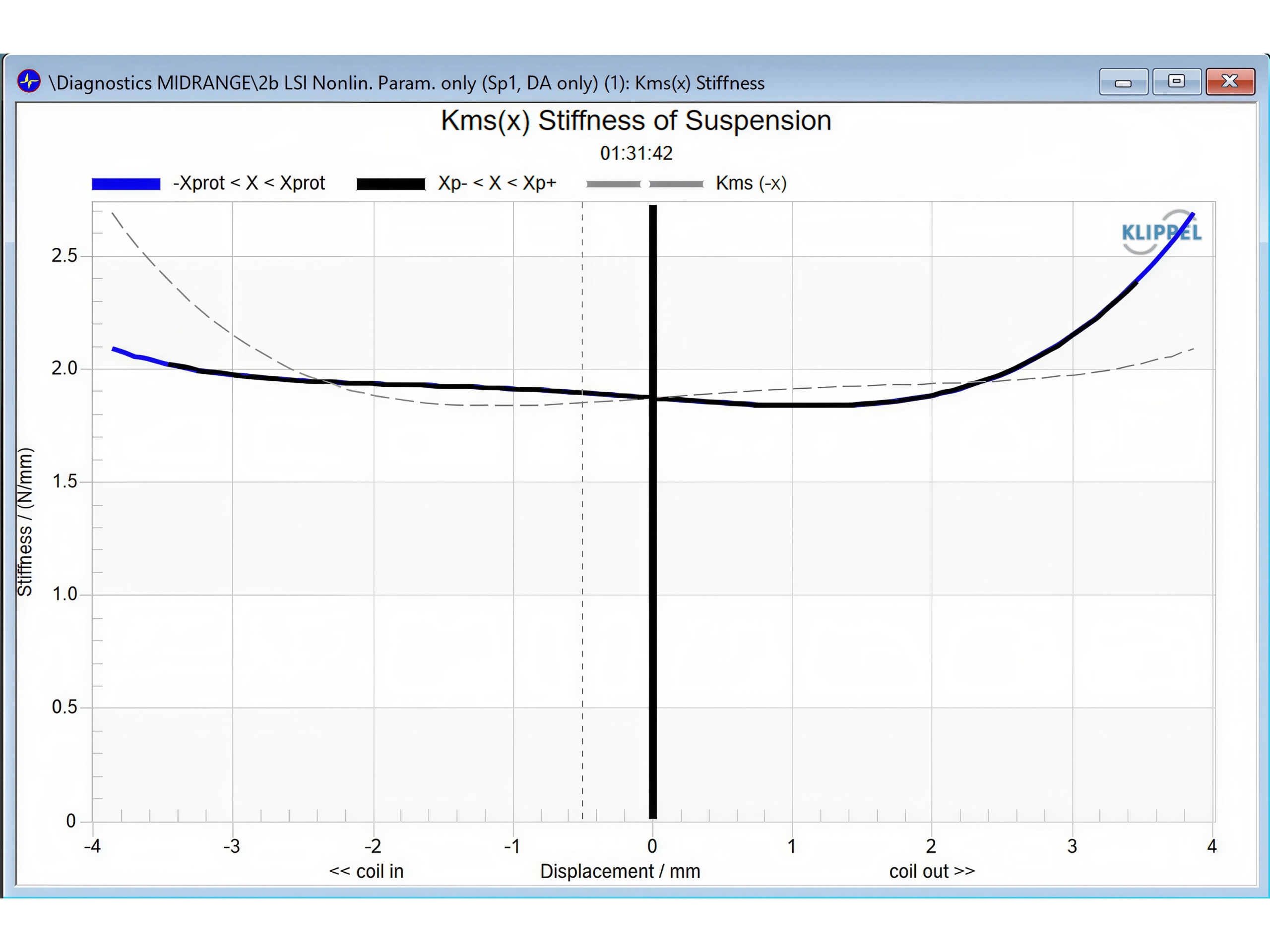

– Designed and optimised using FEA measurements.
– One-way Xmax of 4 mm via 70% BL.
– Recommended frequency range of 400 Hz to 5000 Hz.

Electrical Specifications
– Nominal configuration: one-way 3.5″ midrange set
– Continuous power handling: 100 Watts
– Maximum power handling: 200 Watts
– Voice coil diameter: 50.8 mm

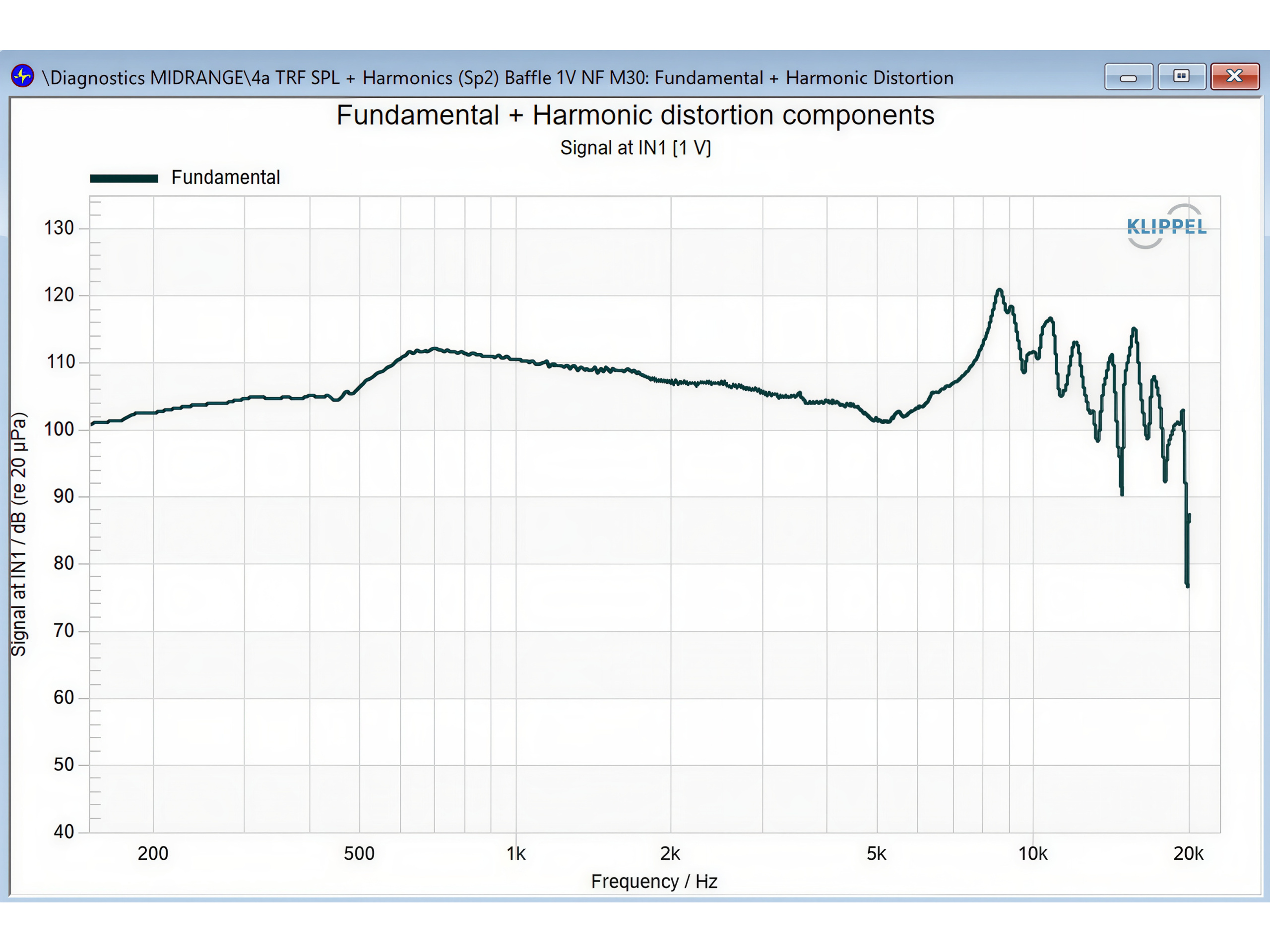

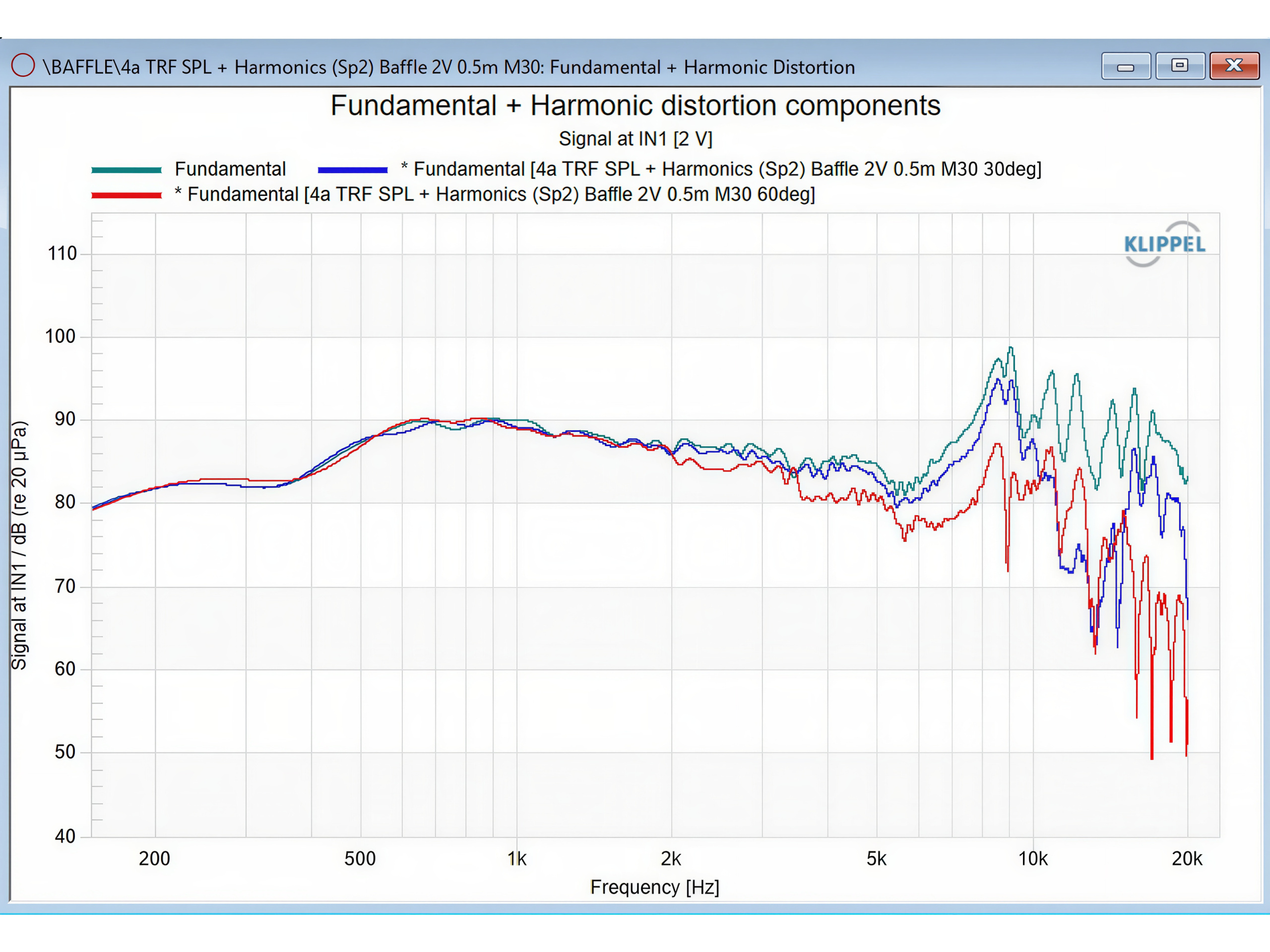

– Frequency response: 400 Hz – 20000 Hz
– Sensitivity: 88.5 dB
– DC resistance (Re): 3 Ohms
– Resonant frequency (Fs): 102.6 Hz
– Xmax: +/- 4 mm

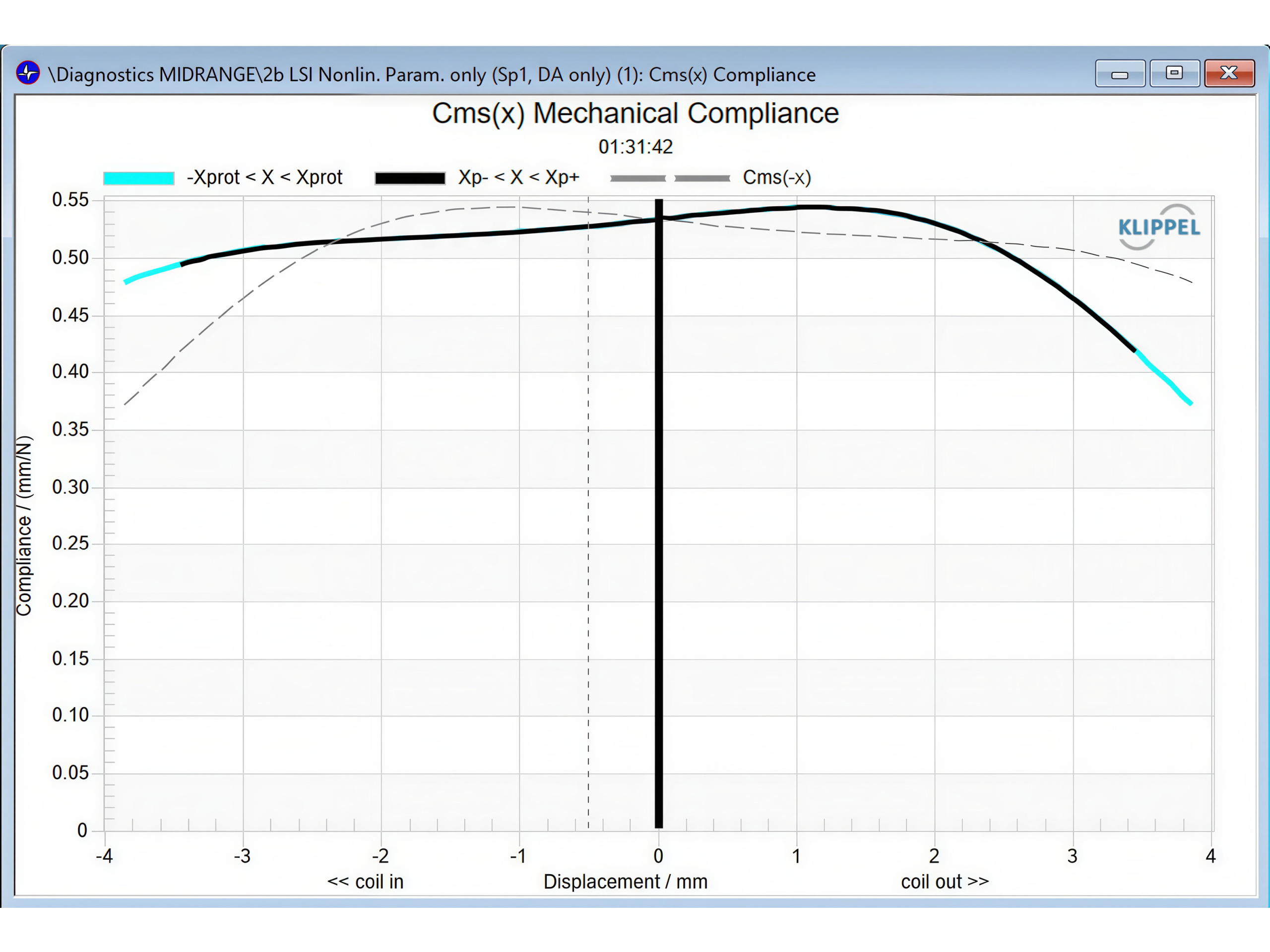

– Compliance (Vas): 0.34 l
– Total Q (Qts): 0.18
– Mechanical Q (Qms): 1.02
– Electrical Q (Qes): 0.22

Physical Specifications
– Mounting diameter: 74 mm
– Mounting depth: 36 mm
– Weight: 0.55 kg

Documentation
– Fhrx Studios’ review

Important Disclaimers
Given the dynamic nature of electronics industries these days; below are listed some very important specifics you need to be aware of.

Brand Authorization And Stock Sourcing
We are a fully authorised Australian dealer of this brand and all stock is sourced through legitimate channels. It therefore enjoys full Australian warranty, backing and support.

Pricing Structure
Whilst we endeavor to offer the best price possible, we ask that if you do find a better price elsewhere from an authorised dealer; please contact us. Also be aware that we regularly conduct group buys and sales, therefore pricing can sometimes be subject to change without notice.

Stock Structure
Being a dynamic store is conducive to our inventory constantly changing. We list only a small portion of our stable online, usually products most popular. Aside from these we also stock numerous other variants and configurations of these products, hence if you don’t see what you’re after please contact us.

Shipping
All our products are shipped with registered and insured postage. Upon ordering you’ll be issued with a receipt, a consignment note via which you can track your order, and we’ll also SMS you photos of the package for identification purposes.

Technical support
This last one we cannot emphasise enough! Please contact us if you require any further information or assistance with the setup and use of this product, especially pertaining to aspects more technical. As we want you to get the very best from this product.
